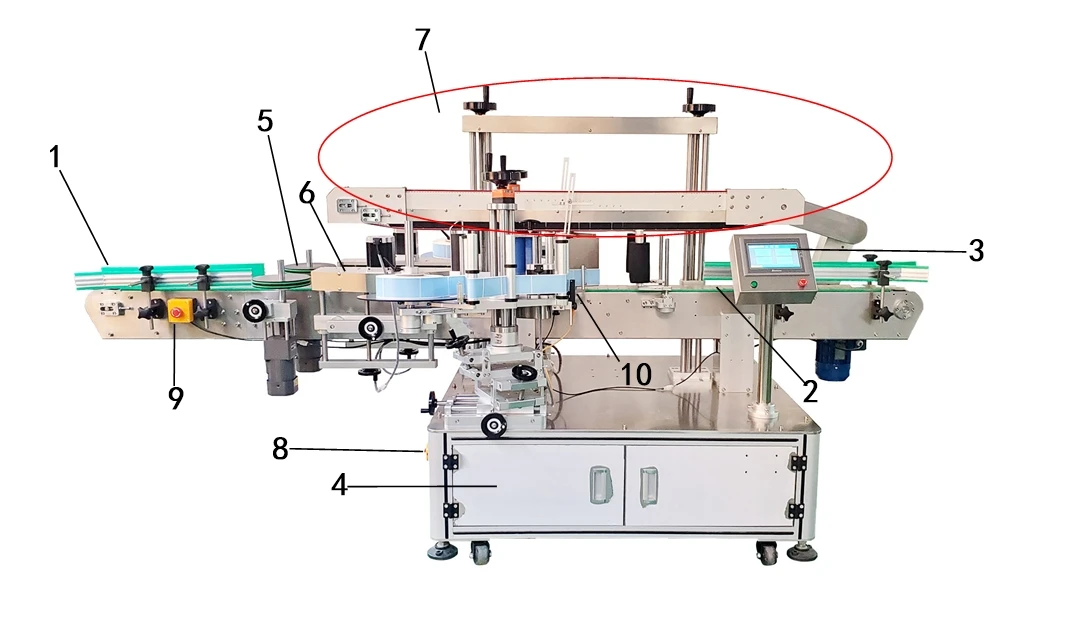

HNTB-962 Automatic Double-Side Labeling Machine

HNTB-962 Automatic Double-Side Labeling Machine Introduction:

HNTB-962 is a double side labeling machine suitable for single-side and double-side labeling of flat, round, and square bottles. It is suitable for a wide range of products, including flat shampoo bottles, flat lubricant bottles, round hand sanitizer bottles, and other containers used in the daily chemical, food, pharmaceutical, and industrial product sectors. The machine can apply labels to both sides of a container in a single pass, reducing repeated feeding operations and improving overall production line efficiency.

This model double-sided labeling machine can automatically apply 120 labels per minute, making it a highly efficient and cost-effective device with a high return on investment.

Inquire Now Next Product

Features of HNTB-962 Automatic Double-Side Labeling Machine

1. Powerful functions, one machine can realize single-sided and double-sided labeling of 4 kinds of products (round bottle, flat bottle, square bottle, special-shaped bottle).

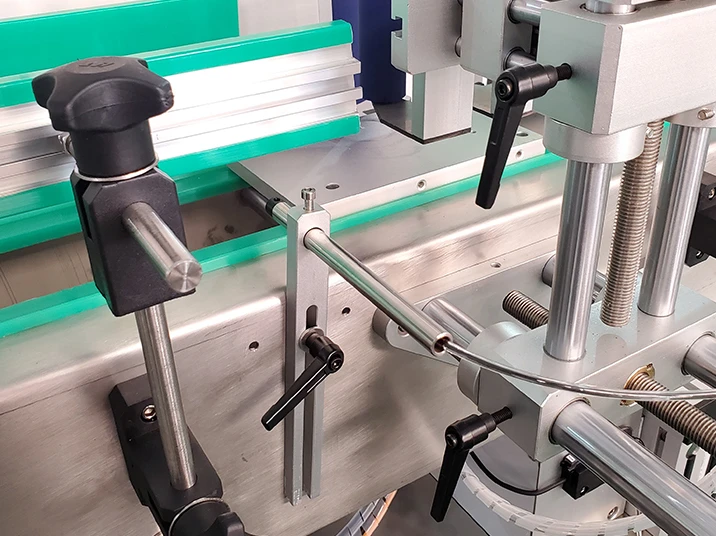

2. The double-sided rigid plastic synchronous guide chain is used to automatically ensure the neutrality of the bottle, and it has low requirements for workers to put bottles and connect the bottles to the assembly line, which greatly reduces the difficulty of workers' operation or assembly line docking.

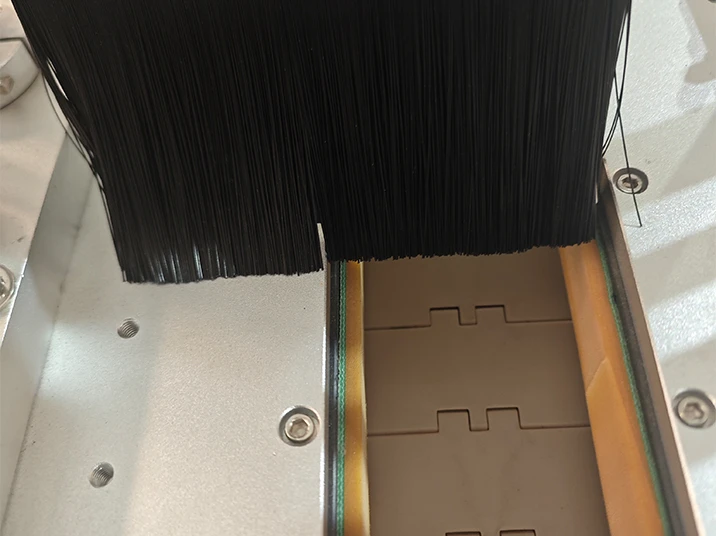

3. Equipped with a spring-pressing top-pressing mechanism to ensure smooth product delivery and effectively eliminate the error of the bottle height itself.

4. Equipped with an automatic bottle separation mechanism, the spacing is automatically separated before the bottle is guided to ensure the stability of subsequent bottle guiding, transportation and labeling.

5. Equipped with two repeating labeling mechanisms to ensure the labeling accuracy for the first time, and the secondary extrusion-type labeling can effectively eliminate air bubbles and ensure that the label is tightly attached at the head and tail.

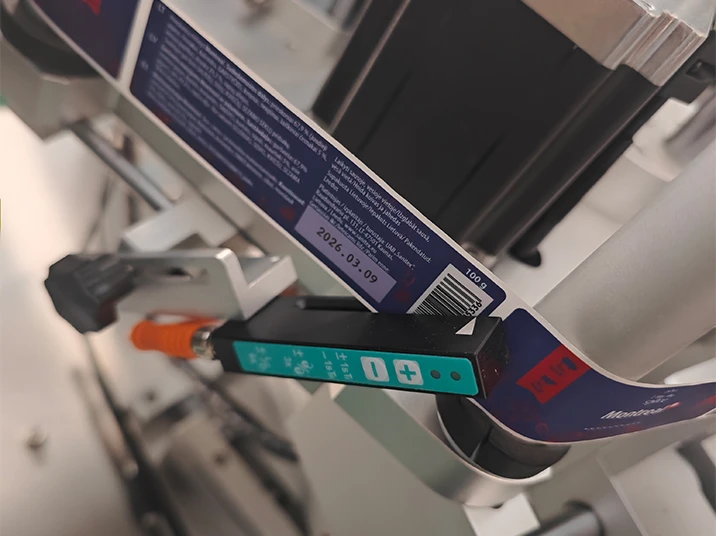

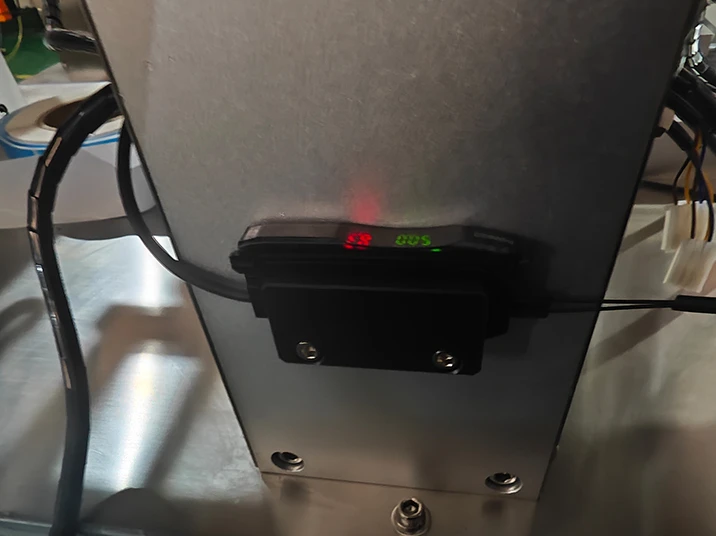

6. Intelligent control, automatic photoelectric tracking, with no labeling, no label automatic correction and label automatic detection function, to avoid wasting labels and missing stickers.

7. The main materials of the equipment are stainless steel and high-grade aluminum alloys, which conform to GMP production specifications. The overall structure is firm and beautiful.

Technical Parameter of HNTB-962 double side sticker labeling machine

Model	HNTB-962
Label size	Length：20mm～300mm Width：20mm～170mm Outer roll dia.（mm）：φ300 Inner roll dia.（mm）：φ76mm
Product size	Length：20mm～250mm Width：30mm～90mm Height：60mm～280mm
Labeling speed	30~120pcs/min
Labeling accuracy	±1mm
Power	220V 50HZ 1100W(step motor) 1600W(servo motor)
Dimension	3000mm×1450mm×1600mm
Weight	330kg

Double side labeling machine manufacturer and factory in China

Henuo is a professional double side labeling machine manufacturer and factory in China, specializing in the design, production, and supply of automatic labeling equipment for various bottle shapes and industries. With reliable manufacturing capabilities and strict quality control, Henuo provides efficient labeling solutions, customized configurations, technical support, and competitive factory pricing for distributors, packaging companies, and production line integrators worldwide.
