The high-speed rotary round bottle labeling machine is an automated labeling equipment specifically designed for continuous, high-volume labeling of round bottles and cylindrical containers. Using a rotary turret, servo-driven labeling system and PLC control, the machine can achieve production speeds of up to 600 bottles per minute while maintaining stable and accurate label placement.
It is suitable for beverage, pharmaceutical, food, personal care and daily chemical production lines where conventional inline labeling machines cannot meet the required throughput.
The machine can operate as a standalone labeling system or be integrated with upstream filling and capping machines and downstream inspection and packaging equipment.
Share:
Features
1. Ultra-high-speed operation capability
The labeling speed is generally between 300 to 600 bottles per minute (i.e., 36,000 bottles per hour), and some advanced models can reach 700 bottles per minute
Adopting a servo drive + PLC control + variable frequency speed regulation system, it supports stepless speed regulation and intelligent start-stop, adapting to different production rhythms
2. High precision and intelligent correction
Labeling accuracy can reach ±0.2mm to ±0.5mm, and some models equipped with visual positioning systems have an error less than ±0.1mm
Supporting technologies such as color code tracking, AI dynamic compensation, and cam phase adjustment, it ensures precise alignment of label positions, especially suitable for labels with printed patterns or requiring aligned seams
3. Compatibility with multiple materials and bottle types
Applicable containers: PET round bottles, glass bottles, iron cans, ampoules, vials, etc
Bottle diameter range: Φ10mm to Φ100mm, height 50mm to 350mm (specific details depend on the model)
It can handle various label materials such as adhesive labels, OPP hot-melt adhesive films, electronic supervision codes, QR codes, etc
4. Intelligent function integration
Optional equipment includes a coding machine and a thermal marking machine, which can complete the printing of production dates, batch numbers, and barcodes simultaneously during labeling
Support networking with MES/SCADA systems to enable data upload, remote monitoring, and predictive maintenance
It features functions such as "labeling everything", "label shortage alarm", and "automatic rejection", reducing consumable waste and manual intervention
5. GMP compliance and production line adaptation
The entire machine is constructed from 304 stainless steel and aluminum alloy, featuring a compact design and easy-to-clean features, complying with GMP standards in the pharmaceutical and food industries
It can be flexibly configured for vertical or horizontal discharge, adapting to various production line layouts such as U-shaped and L-shaped.

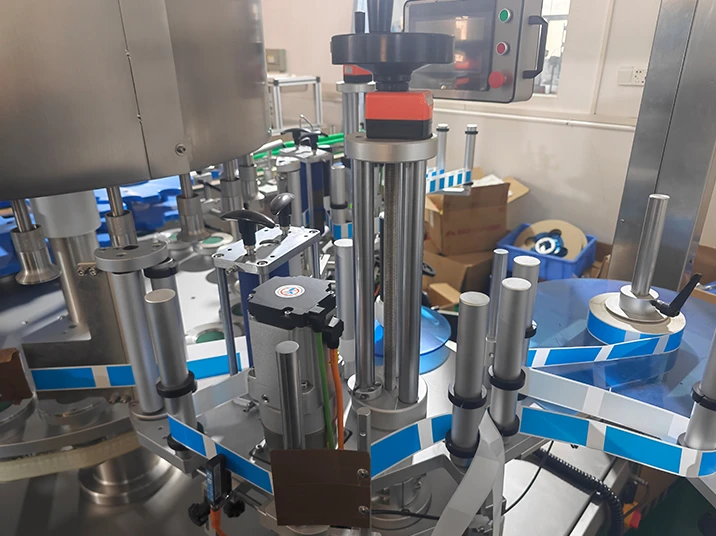

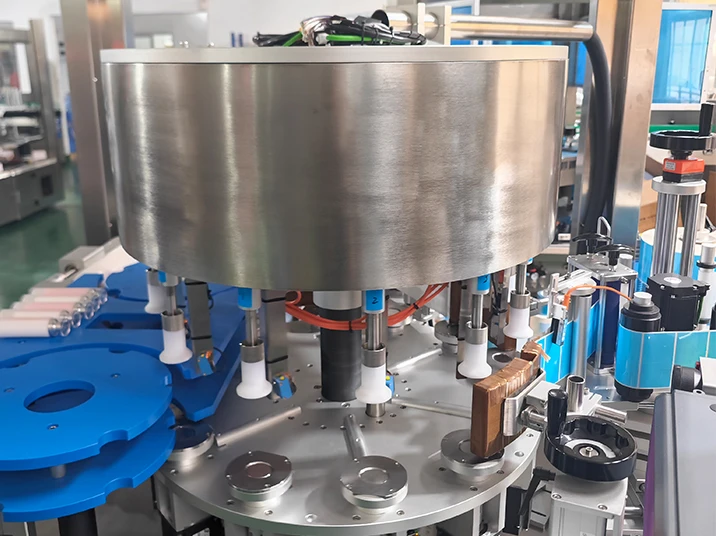

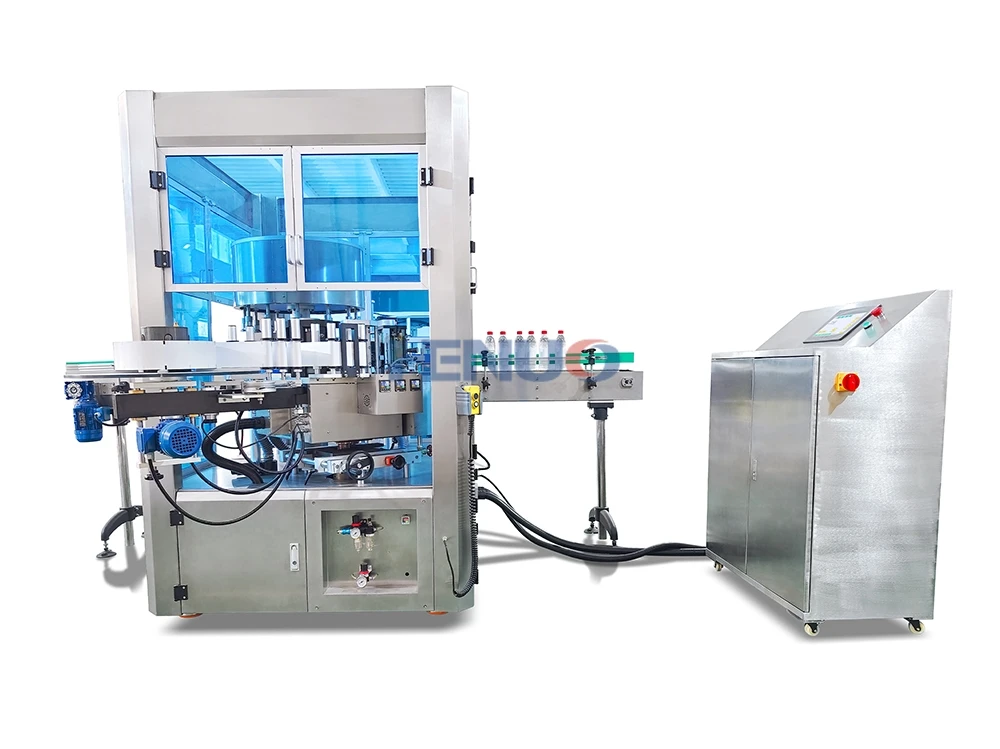

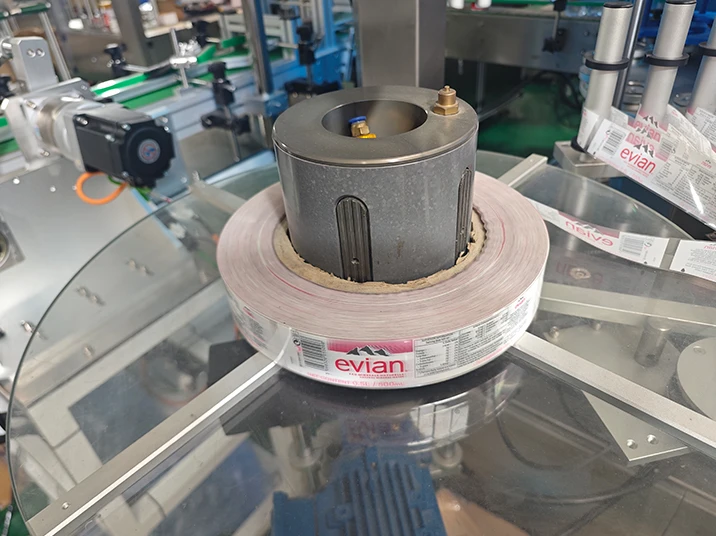

Equipment Showcase
Key Specifications
| Machine Type | Automatic Rotary Round Bottle Labeling Machine |
| Labeling Speed | Up to 600 bottles/min |
| Labeling Accuracy | Up to ±0.2 mm* |
| Bottle Type | Round / Cylindrical Containers |
| Bottle Materials | PET, Plastic, Glass, Metal |
| Bottle Diameter | Approx. Φ10–100 mm* |
| Bottle Height | Approx. 50–350 mm* |
| Drive System | Servo Motor |
| Control System | PLC + Touch Screen |
| Machine Material | 304 Stainless Steel + Aluminum Alloy |
| Operation Mode | Continuous Automatic Labeling |
| Line Integration | Filling, Capping, Coding, Inspection & Packaging Lines |
*Actual speed, accuracy and applicable bottle dimensions depend on bottle shape, label dimensions, labeling method and machine configuration.
The machine can achieve up to 600 bottles per minute. Actual production speed depends on bottle dimensions, label size, labeling method and required positioning accuracy.
It is mainly designed for round and cylindrical containers, including PET bottles, glass bottles, pharmaceutical bottles, cosmetic bottles and metal containers.
Under suitable bottle and label conditions, labeling accuracy can reach up to ±0.2 mm. Actual accuracy depends on container consistency, labeling speed and positioning requirements.
Yes. The rotary labeling machine can be integrated with filling, capping, coding, inspection and downstream packaging equipment. Production speed and conveyor specifications should be provided before configuration.
Yes, within the designed bottle range. Some formats require machine adjustment or replacement of bottle-handling parts. Providing all bottle specifications before manufacturing helps optimize changeover.
Yes. Optional coding, barcode printing, label detection, vision inspection and rejection systems can be integrated according to the production requirement.
Please provide your bottle dimensions, bottle samples or drawings, label dimensions, required labeling position, production speed and existing production-line information.
