HNTB-831 is an automatic flat labeling machine designed to apply self-adhesive labels accurately to flat or slightly curved product surfaces. It is widely used in the food, pharmaceutical, daily chemical, electronics, printing and logistics industries for labeling cartons, books, cards, packaging boxes, PCB boards and other flat products. This automatic flat label applicator supports various pressure-sensitive labels, including paper labels, barcode labels, QR code labels, anti-counterfeit labels and electronic supervision labels.
Share:
Application of automatic flat labeling machine
Pharmaceutical industry: used for affixing electronic supervision codes and anti-counterfeiting labels to the flat surfaces of drug packaging boxes and vials, in compliance with GMP standards.
Food industry: suitable for labeling outer packaging such as biscuit boxes, mooncake gift boxes, and fresh food foam boxes, ensuring the labels are flat and aesthetically pleasing.
Daily chemical industry: Quickly affix brand logos and ingredient labels to flat bottles of shampoo and boxes of skin care products.
Electronics industry: Model and conformity label affixing for small-sized components such as mobile phone batteries, charger casings, and circuit boards.
Logistics and Printing: Batch labeling of folders, book covers, and express delivery cartons to enhance warehouse and shipping efficiency.
Features
1. Utilizing servo motor drive and PLC control system (such as Panasonic PLC), combined with photoelectric tracking and visual positioning technology, precise label attachment is achieved, with an error control within ±1mm, and some high-end models can achieve ±0.5mm.
2. With fast speed and high efficiency, the fully automatic machine can achieve a rate of dozens to 200 pieces per minute, several times faster than manual labor.
3. Self-adhesive labels can be applied to various materials such as paper, PET, transparent labels, anti-counterfeiting labels, barcodes, and QR codes.
4. The operation is simple, with easy-to-adjust touch screen settings for parameters, one-click fine adjustment of width/height/position, and quick product changeover.
5. The system has a low failure rate and is easy to maintain due to its simple structure, which mainly consists of a labeling head, conveyor, and sensor. Cleaning the label peeling plate and rubber roller is sufficient.
6. Support the option of selecting a coding machine or a marking machine, which can simultaneously print production date, batch number, QR code, and other information during labeling, achieving an integrated "labeling-coding" process. This meets compliance requirements such as drug traceability and food shelf-life management.
7. Fully functional, including missing label alarm, broken label alarm, counting, anti-relabeling, and positioning labeling.
8. The efficient production mode can be used standalone or integrated into an automated assembly line to achieve unmanned operation. Some models are equipped with automatic loading and unloading, weighing and rejecting systems, further reducing labor costs by over 50%.

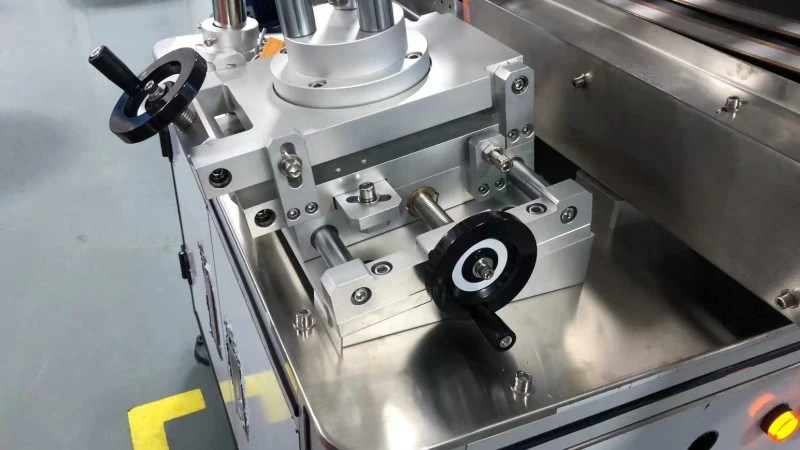

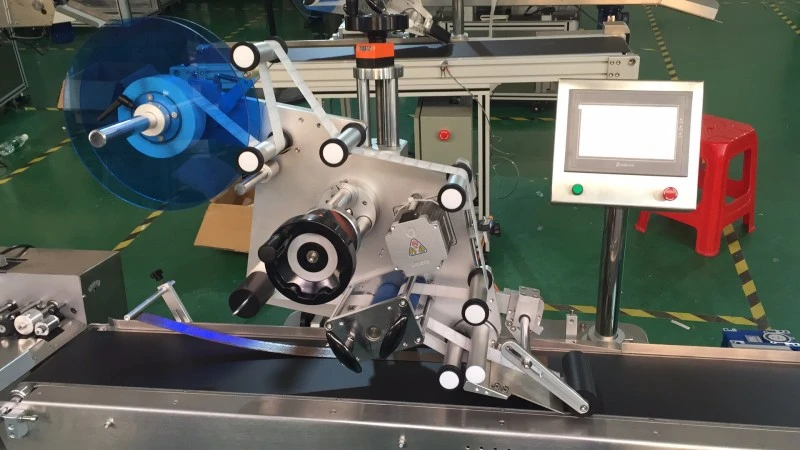

Equipment Showcase
Technical Parameter of automatic flat label applicator HNTB-831
|
Model |
HNTB-831 |
|
Label size |
Length：15mm～250mm Width：15mm～160mm Outer roll dia.（mm）：φ250 |
|
Product size |
Length：40mm～400mm Width：40mm～300mm Height：0.2mm～150mm |
|
Labeling speed |
40～100pcs/min |
|
Labeling accuracy |
±0.5mm |
|
Power source |
220V 50HZ |
|
Power |
1.45KW |
|
Dimension |
1600mm×880mm×1600mm |
|
Weight |
180KG |
Actual labeling speed and accuracy may vary according to the product dimensions, label material, label size, feeding stability and production-line configuration.

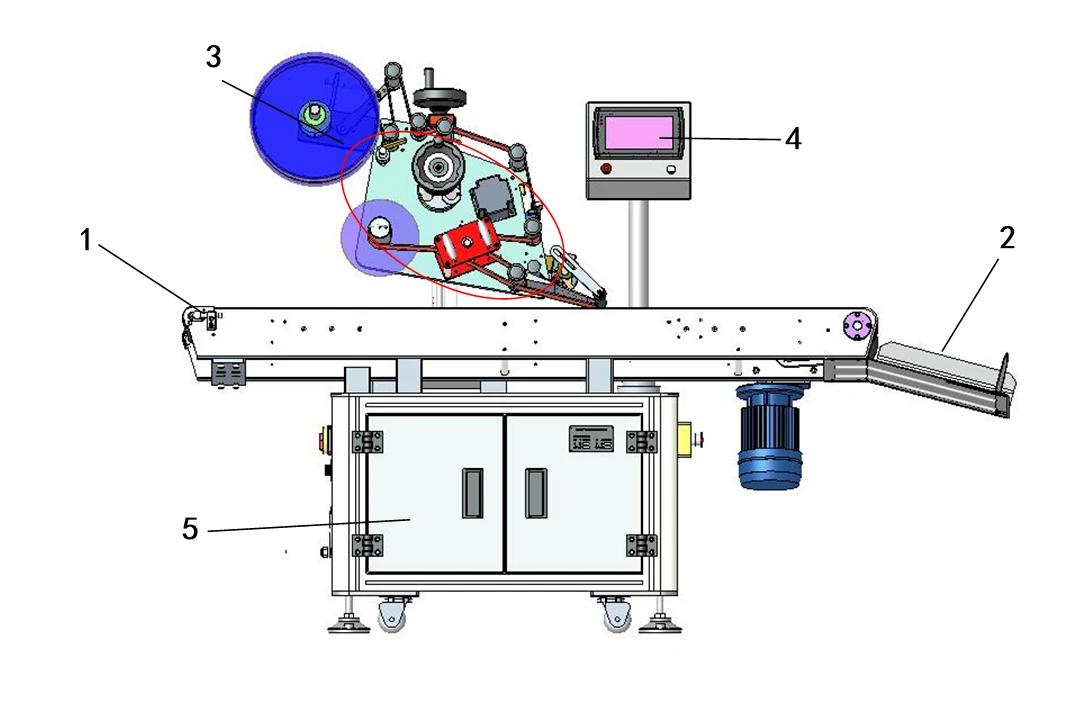

Structure
The conveyor transports products through the detection and labeling stations. Its speed can be adjusted to coordinate with the labeling head and upstream equipment.
The collecting plate supports the collection and organization of finished products. For higher production requirements, an automatic receiving device can be selected.

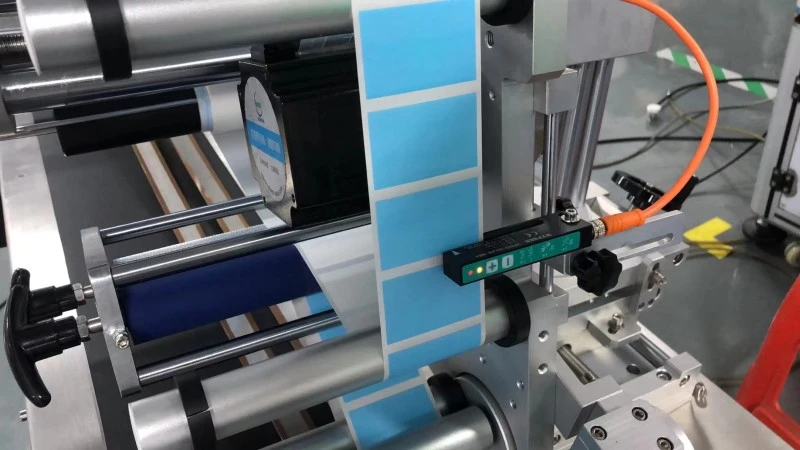

The labeling head contains the label roll holder, traction mechanism, peeling plate, sensor and label web recovery mechanism. It controls label feeding and dispensing.
The touch screen provides access to the main operating parameters and allows operators to fine-tune the labeling position.
The electric box contains the PLC, motor control components, power components and other electrical systems required for automatic operation.
Options
Printer-dater
Automatic feeder
Automatic take-up unit
Additional labeling head
Multiple language touchscreen
Electronic labeling unit for transparent labels
