Automatic Flat Labeling Machine with Feeder

Automatic Flat Labeling Machine with Feeder

Key Specifications

Model: HNTB-832

Labeling Speed: 20–40 pcs/min

Labeling Accuracy: ±1 mm

Label Size: 15–250 mm (L) × 15–160 mm (W)

Product Size: 40–300 mm (L) × 20–250 mm (W) × 0.2–2 mm (H)

Power Supply: 220V / 50Hz

Power: 1.45 kW

Automatic feeding system for continuous and efficient flat surface labeling.

Share:

Automatic Flat Labeling Machine with Feeder HNTB-832

The Automatic Flat Labeling Machine with Feeder HNTB-832 is a packaging equipment specifically designed for automatically affixing self-adhesive labels on flat or slightly curved surfaces. HNTB-832 Automatic Flat Labeling Machine with Feeder is widely used in industries such as food, medicine, daily chemicals, electronics, and logistics, and can precisely label products such as paper boxes, books, cardboard boxes, and PCB boards. It supports various label types, including adhesive labels, barcodes, and electronic supervision codes.



Features of HNTB-832 Automatic Flat Labeling Machine with Feeder



1. Utilizing servo motor drive and PLC control system (such as Panasonic PLC), combined with photoelectric tracking and visual positioning technology, precise label attachment is achieved, with an error control within ±1mm, and some high-end models can achieve ±0.5mm.



2. With fast speed and high efficiency, the fully automatic machine can achieve a rate of dozens to 200 pieces per minute, several times faster than manual labor.



3. Self-adhesive labels can be applied to various materials such as paper, PET, transparent labels, anti-counterfeiting labels, barcodes, and QR codes.



4. The operation is simple, with easy-to-adjust touch screen settings for parameters, one-click fine adjustment of width/height/position, and quick product changeover.



5. The system has a low failure rate and is easy to maintain due to its simple structure, which mainly consists of a labeling head, conveyor, and sensor. Cleaning the label peeling plate and rubber roller is sufficient.



6. Support the option of selecting a coding machine or a marking machine, which can simultaneously print production date, batch number, QR code, and other information during labeling, achieving an integrated "labeling-coding" process. This meets compliance requirements such as drug traceability and food shelf-life management.



7. Fully functional, including missing label alarm, broken label alarm, counting, anti-relabeling, and positioning labeling.



8. The efficient production mode can be used standalone or integrated into an automated assembly line to achieve unmanned operation. Some models are equipped with automatic loading and unloading, weighing and rejecting systems, further reducing labor costs by over 50%

Application

The Automatic Flat Labeling Machine with Feeder is designed for precise and efficient labeling of flat products across various industries. Equipped with an automatic feeding system, this Flat Labeling Machine with Feeder supports continuous labeling of paper cards, thin packaging materials, electronic components, and other compatible flat surfaces. It is widely used in pharmaceutical, food, daily chemical, electronics, logistics, and printing applications.

Pharmaceutical Industry

The Automatic Flat Labeling Machine with Feeder is suitable for applying barcode labels, anti-counterfeiting stickers, and product identification labels to compatible flat pharmaceutical packaging materials. Its precise labeling system helps maintain consistent label positioning and improves packaging identification and traceability. The machine can be integrated with optional coding equipment for batch numbers and production information.

Food Industry

In food packaging applications, the Flat Labeling Machine with Feeder can apply brand labels, product information stickers, barcodes, and QR code labels to flat food packaging materials, paper cards, and other suitable surfaces. The automatic feeding and conveyor system supports continuous labeling operations, helping food packaging manufacturers improve labeling efficiency and maintain consistent label placement.

Daily Chemical Industry

The Automatic Flat Labeling Machine with Feeder is suitable for labeling compatible flat packaging materials used in cosmetics, skincare products, and personal care products. It can apply brand stickers, ingredient information labels, and identification labels to flat packaging surfaces. The adjustable labeling mechanism allows operators to accommodate different label sizes and product dimensions.

Electronics Industry

The Flat Surface Labeling Machine is suitable for applying model identification labels, barcode stickers, QR code labels, and product traceability labels to compatible flat electronic components, including PCB boards and battery-related components. With a labeling accuracy of ±1mm, the Automatic Flat Labeling Machine with Feeder helps maintain consistent label positioning for electronic product identification and tracking.

Logistics and Printing Industry

The Flat Labeling Machine with Feeder is widely used for automatic labeling of paper cards, book covers, folders, cardboard sheets, and other thin, flat printing materials. It supports barcode labeling, QR code labeling, and product identification sticker application. The automatic feeding system reduces manual handling and allows continuous processing of flat products, making it suitable for printing companies, packaging manufacturers, and logistics-related labeling operations.

Equipment Showcase

Technical Parameter of HNTB-832 Flat Labeling Machine with Feeder

Model

HNTB-832



Label size

Length:15mm~250mm

Width:15mm~160mm

Outer roll dia.(mm):φ250

Inner roll dia.(mm):φ76mm

Product size

Length:40mm~300mm

Width:20mm~250mm

Height:0.2mm~2mm

Labeling speed

20~40pcs/min

Labeling accuracy

±1mm

Power source

220V 50HZ

Power

1.45KW

Dimension

2200mm×700mm×1400mm

Weight

180KG

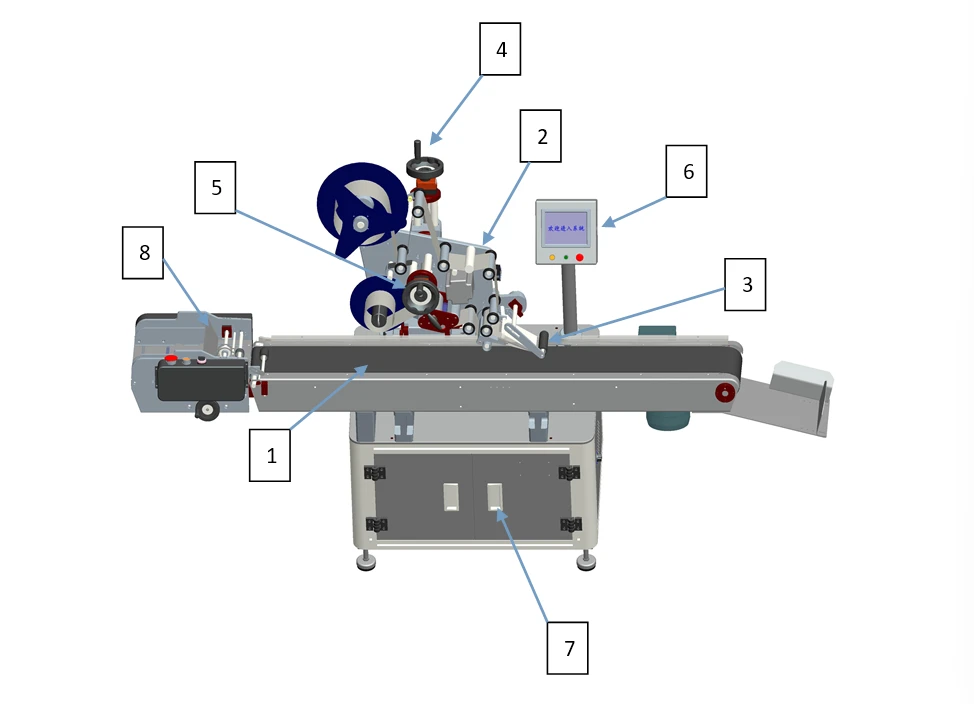

Structure

1) Conveyor:

2) Labeling head

3) label covering

4) Up and down adjustment mechanism

5) Front and back adjustment mechanism

6) Man-machine interface7) Electrical control box

8) Product dispensing device

Options

Dater printer

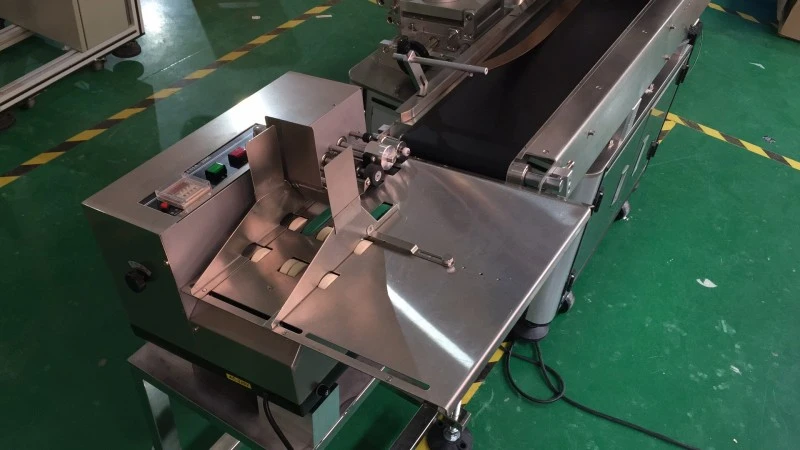

Auto feeding device

Auto receiving device

Extra labeling head

Multiple touch screen language

Electronic marking device for transparent label
